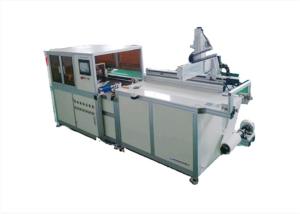

fully automatic Ro membrane rolling machine
Basic functions:
1. Automatically proportioned glue supply. Achieve accurate mixing of two-component liquids (such as AB glue) in proportion, and mix instantaneously as much as dispensing, which is convenient, fast and economical.
2. Automatic manipulator trajectory dispensing to achieve accurate trajectory positioning. The trajectory of any point, line, arc and circle can be compiled and dispensed. Multiple paths can be connected at the same time.
3. Automatic feeding and film rolling
4. Automatically top the central pipe, automatically lower the product to realize automatic feeding of guide cloth, automatic top the central pipe, automatic ultrasonic welding, automatic dispensing, automatic film rolling, automatic film cutting, automatic tape rolling, automatic tape cutting, automatic finished product cutting.
Main configurations:
Three-axis drive motor: Panasonic/Mitsubishi, Japan
Film Driving Motor: Panasonic/Mitsubishi, Japan
PLC: Mitsubishi, Japan
Motion Control Card: Everybody is happy
Cylinder: SMC
Ultrasound Welding: Special Customization
Screw guide: Taiwan TBI
Display: Taiwan Vinylon
Vacuum pump: 4L
Storage tank: 304 stainless steel (40L)
Equipment parameters:
Travel 1000mm (X)*500mm (Y)*150mm (Z)
Maximum speed 500mm/s
Mixing mode: static mixing tube, instantaneous mixing, easy cleaning
Resolution 0.01mm
Proportional Control System: Progressive Motor + Gear Pump
Motion Control System PLC + Motion Control Card
Ultrasound welding
Repetition accuracy (+0.25mm)
Mixing ratio 1:1-10:1 (digital supplementary adjustable comparison)
The amount of glue injected per injection is 1-15G/s (the amount of vomiting can be adjusted according to the proportion of glue)
Power 5.5KW 220V
Precision of gel injection (+2%)
Capacity 85pc/H
Ratio accuracy (+2%)
Weight 880KG
